Radiator Valve
Butterfly Valve(Radiator Valve)
The Butterfly type radiator valve is attached to transformer tank for removal the radiator without oil drainage. When the transformer is shipped without radiators, the opening of radiators are convered by means of blinking of plates.
KP1206 / KP1207 / KP1210-1
Product Dimension
| Model | Type | A | B | ØC | ØD | ØE | ØF | G | ØH | I | J |

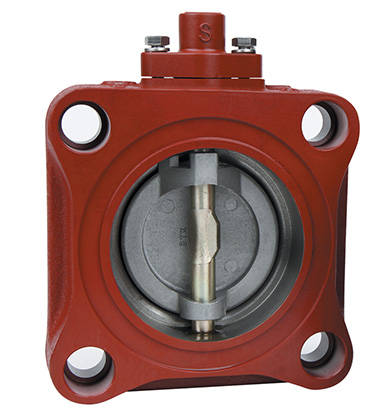

| KP1206 | 3″F | 196 | 150 | 150 | 92 | 98 | 115 | 2.5 | 43 | 106.1 | 28 |
| KP1207 | 4″F | 218 | 172 | 180 | 110 | 122 | 146 | 2.5 | 45 | 127.3 | 28 |

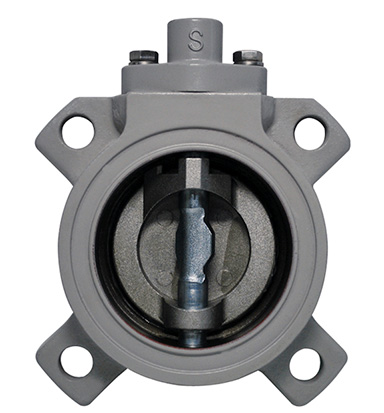

| KP1210-1 | 3″B | 196 | 150 | 161.2 | 92 | 98 | 115 | 2.5 | 43 | 114 | – |
Type & Option
| Usage | Pipe Connection area for oil immersed transfomers |
| Installation | Stud Bolts type |
| Body | FC 20 |
| Option Item | Stud Bolts |
※ Customizing Valves are available on request.
Specifications of Butterfly Valve
KP1201
Specfications
| Size | Body | Options | Remarks |

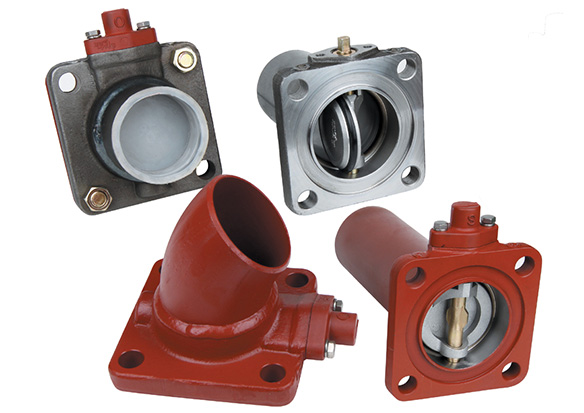

| 3″ | SS400 | Pipe & Brackets | Valve cover & Mounting Hardware |
KP1202
Specfications
| Size | Body | Options | Remarks |

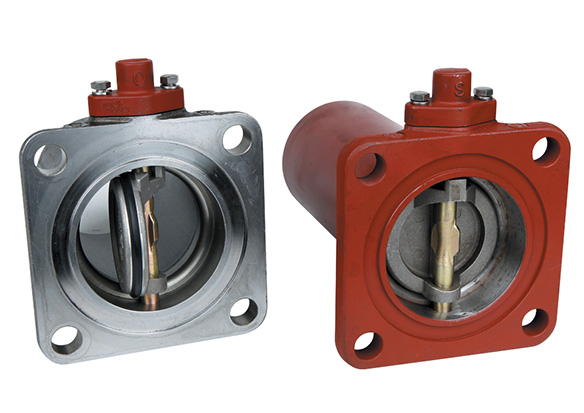

| 4″ | SS400 | Pipe & Brackets | Valve cover & Mounting Hardware |
KP1203
Specfications
| Size | Body | Options | Remarks |

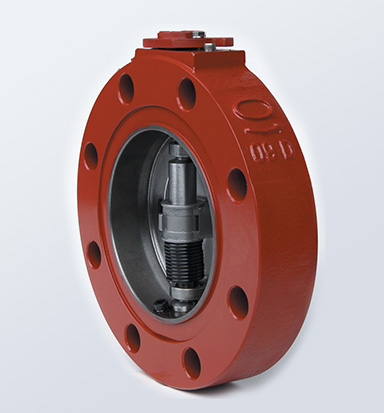

| 6″ | FC20 | Stud Bolts | Transformer Pipe Connection |
KP1204
Specfications
| Size | Body | Options | Remarks |
| 2″ | AL | Stud Bolts | Transformer Pipe Connection |
KP1205
Specfications
| Size | Body | Options | Remarks |
| 1.5″ | AL | Stud Bolts | Transformer Pipe Connection |
KP1210-2
Specfications
| Size | Body | Options | Remarks |

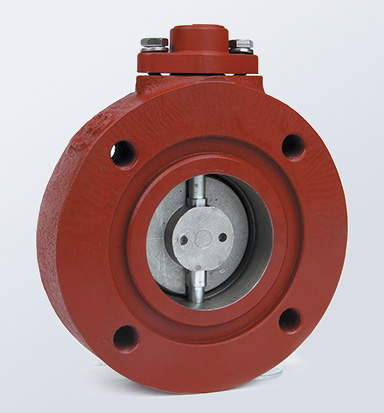

| 2″, 3″ | FC20 | Stud Bolts | BH-Relay Pipe Connefction |
KP1211
Specfications
| Size | Body | Options | Remarks |
| 3″ | FC20 | Stud Bolts | “Radiator Head, Oil Pump, Cooler Unit,3″”BH-Relay” |
KP1212
Specfications
| Size | Body | Options | Remarks |

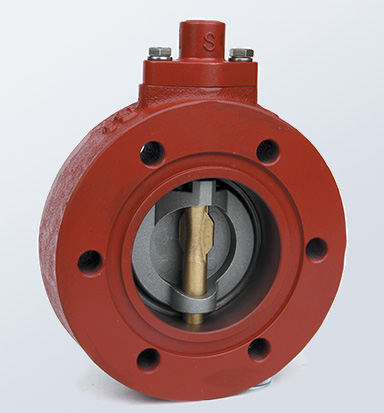

| 4″ | FC20 | Stud Bolts | Radiator Head, Oil Pump, Cooler Unit |
KP1213
Specfications
| Size | Body | Options | Remarks |

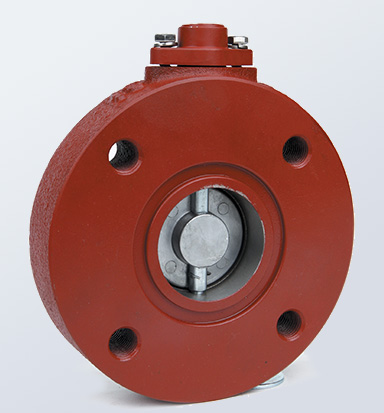

| 2″ | FC20 | Stud Bolts | SPR Pipe Connection |
