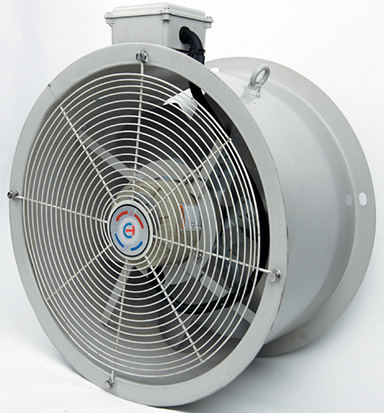

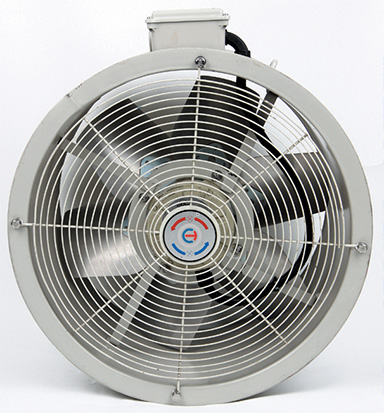

KP0701 Cooling Fan
Fan Guard
Fan Guard is constructed as ring shape by steel rod consisted of motor support and fan blade protector. It is possible to maintain low noise and high efficiency by reducing the total weight and minimize the disturbance of air flow.
Motor
The motor is fractional horsepower and total enclosed waterproof type. Insulation motor is ‘F’ class. On the continuous operation, it has high efficiency.
Fan Blades
It is designed to provide enough windflow and is made of aluminum. Thus, it is light anticorrosive and heat-resistant. Especially, accurate and well balanced fan blade by the balancing machine makes possible to maintain the low noise.
Specifications
| Pipe Size | Air Flow (㎥/sec) |
CFM | P | Volts | HP | Pole | Hz | RPM | dBA | I/C | Distance | Kg |
| G01 | 1.9 | 4080 | 3 | 380/220 | 1/2 | 6 | 60 | 1150 | 65 | E | 392×392 | 20 |
| G02 | 1.6 | 3430 | 1 | 230 | 1/4 | 6 | 50 | 960 | 61 | |||
| G03 | 1.9 | 4080 | 1 | 220 | 1/4 | 6 | 60 | 1150 | 65 | |||
| G04 | 1.9 | 4080 | 3 | 440 | 1/2 | 6 | 60 | 1150 | 65 | |||
| G05 | 1.9 | 4080 | 1 | 240 | 1/4 | 6 | 60 | 1150 | 65 | |||
| G06 | 1.4 | 3000 | 3 | 400 | 1/2 | 8 | 60 | 840 | 64 |
- dBA[Sound Level]: At 6′ [1.83m], all direction average.
- I/C : Motor Insulation Class
- IP-54 is applied in case of side installation of radiator group.
- Other volts, Hz or phases are available on request.
