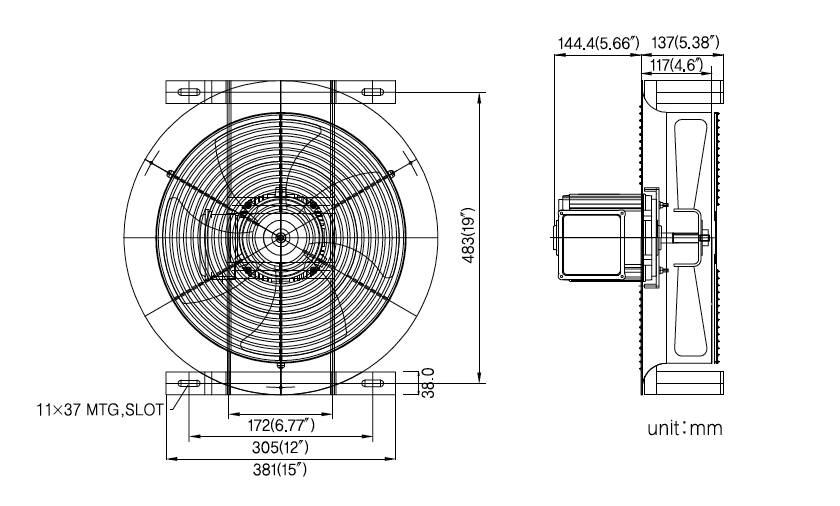

KP0708(16″) Cooling Fan
Installed any position with the mounting hardware or fan guard mounting eyes.
OSHA Fan guards & Hot dip galvanizing guards.
One-piece cast aluminum fan blade.
Specifications
| Model | HP | RPM | Hz | Phase | Voltage | Running Amps |
Full Load Amps |
Watts |
| A | 1/6 | 850 | 60 | 1 | 115 | 0.86 | 1.50 | 88 |
| B | 1/8 | 60 | 1 | 208-230 | 0.69 | 1.20 | 136 | |
| C | 60 | 3 | 208-230 | 0.74 | 0.90 | 108 | ||
| D | 60 | 3 | 460 | 0.39 | 0.45 | 104 | ||
| E | 1/6 | 1140 | 60 | 1 | 115 | 2.14 | 2.90 | 176 |
| F | 60 | 1 | 208-230 | 0.8 | 1.20 | 144 | ||
| G | 60 | 3 | 208-230 | 1.02 | 1.20 | 160 | ||
| H | 60 | 3 | 460 | 0.5 | 0.65 | 160 | ||
| I | 60 | 3 | 575 | 0.44 | 0.60 | 152 | ||
| J | 1/2 | 1750 | 60 | 1 | 115 | 3.11 | 6.40 | 354 |
| K | 1/4 | 60 | 1 | 208-230 | 1.48 | 3.00 | 308 | |
| L | 1/2 | 60 | 3 | 208-230 | 1.49 | 2.30 | 344 | |
| M | 60 | 3 | 460 | 0.78 | 1.15 | 336 | ||
| N | 60 | 3 | 575 | 0.66 | 0.90 | 332 |
- Other volts & phases are available on request.
- 50Hz data are available on request.
| HP | RPM | Air Flow (㎥ /sec) | CFM | dBA | Hz |
| 1/8 | 850 | 1.03 | 2200 | 52.1 | 60 |
| 1/6 | 1140 | 1.35 | 2900 | 58.9 | 60 |
| 1/2 | 1750 | 2.10 | 4500 | 68.2 | 60 |
- Actual CFM[m³/s] as measure on discharge side of one transformer radiator.
- dBA at 6′ [1.83m] from the perimeter of the fan in the open.
- IP54, IP55, IP65
