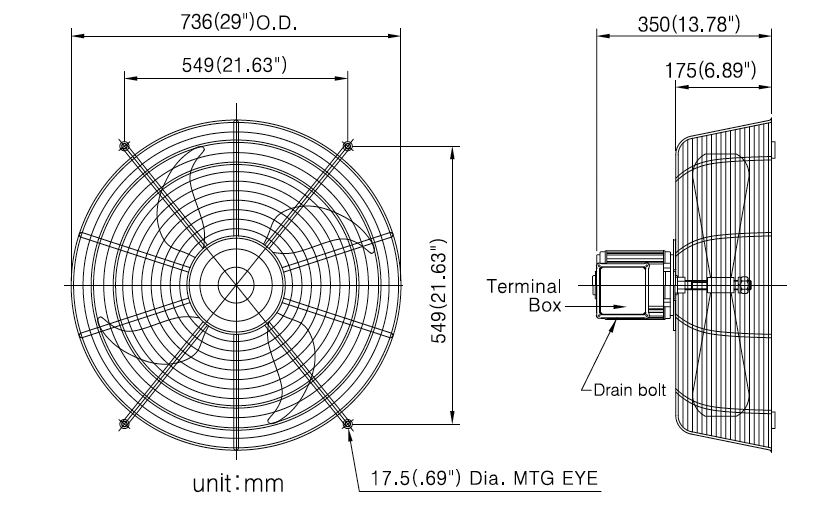

KP0707(26″) Cooling Fan
Installed any position with the mounting hardware or fan guard mounting eyes.
OSHA Fan guards & Hot dip galvanizing guards.
One-piece cast aluminum fan blade and two blades per fan.
Specifications
| Model | HP | RPM | Hz | Phase | Voltage | Running Amps |
Full Load Amps |
Watts |
| A | 1/8 | 850 | 60 | 1 | 115 | 1.98 | 2.4 | 196 |
| B | 60 | 1 | 208-230 | 1 | 1.2 | 192 | ||
| C | 60 | 3 | 208-230 | 0.85 | 0.9 | 200 | ||
| D | 60 | 3 | 460 | 0.44 | 0.45 | 188 | ||
| E | 1/3 | 1140 | 60 | 1 | 115 | 3.02 | 3.6 | 324 |
| F | 60 | 1 | 208-230 | 1.42 | 1.8 | 312 | ||
| G | 60 | 3 | 208-230 | 1.21 | 1.4 | 308 | ||
| H | 60 | 3 | 460 | 0.59 | 0.7 | 312 | ||
| I | 60 | 3 | 575 | 0.48 | 0.56 | 320 |
- Other volts & phases are available on request.
- 50Hz data are available on request.
| HP | RPM | Air Flow (㎥ /sec) | CFM | dBA | Hz |
| 1/8 | 850 | 2.45 | 5250 | 50.9 | 60 |
| 1/3 | 1140 | 3.45 | 7400 | 61.6 | 60 |
- Actual CFM[m³/s] as measure on discharge side of one transformer radiator.
- dBA at 6′ [1.83m] from the perimeter of the fan in the open.
- IP54, IP55, IP65
